10 Best Garden Sprinkler Pump For Large Lawns 2026

⚡ Quick Verdict

📋 How We Evaluated

Comparisons consider stated flow, pressure or head, motor voltage, inlet and outlet sizes, materials, priming requirements, and protective features. Build quality and value reflect listed construction, warranty information, and practical installation details; prices and Amazon rating signals are unavailable.

Suitability depends on the lawn’s zone design and water source, so maximum flow figures alone do not establish real-world sprinkler capacity.

Motor	2 HP
Maximum Flow	5,200 GPH
Maximum Head	108 ft
Connections	2 in. NPT suction; 1.5 in. NPT discharge

What We Found

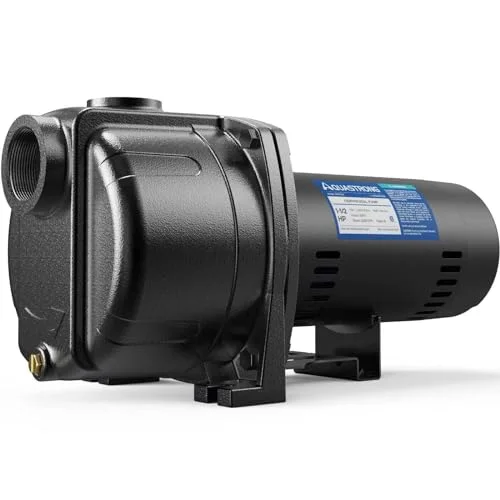

This AQUASTRONG model raises listed maximum flow to 5,200 GPH with a 2 HP motor and 108-foot maximum head. It uses a 2-inch NPT suction connection and a 1.5-inch NPT discharge, which suit larger irrigation lines. The reinforced impeller and diffuser are presented as supporting high-volume operation.

A cast iron volute provides a robust housing, while automatic thermal overload protection helps protect the motor. Unlike the 1.5 HP AQUASTRONG alternative, this version operates at 230 volts only and uses a square-flange motor. The listing does not state flow at a specific pressure, warranty, price, or customer ratings.

Confirm actual performance with the manufacturer’s pump curve before sizing zones.

Who It’s For

This pump is aimed at owners with a large lawn, higher water demand, larger plumbing, and an available 230-volt circuit. Its 5,200 GPH maximum is the highest listed figure in this group, making it an appealing high-volume candidate.

That number does not indicate output at sprinkler pressure, so buyers need a pump curve and a clear zone plan. The cast iron construction suits stationary installation, not frequent transport. Consider the 1.5 HP dual-voltage version if supply flexibility matters more than maximum listed flow. Price and ratings are unavailable.

Motor	2 HP, 230 V
Flow at 30 PSI	79 GPM
Flow at 40 PSI	65 GPM
Maximum Self-Priming Lift	25 ft

What We Found

LUMIRA specifies a 2 HP, 230-volt single-phase pump with a cast iron housing and 1.5-inch female NPT connections. More usefully, it lists 79 GPM at 30 PSI and 65 GPM at 40 PSI, giving buyers pressure-specific flow points.

The motor is open drip-proof, UL recognized, thermally protected, and has a 1.3 service factor. It can self-prime up to 25 feet after initial priming, according to the listing. The stated performance makes this model especially relevant to sprinkler systems that need sustained pressure.

However, the listing does not provide maximum head, warranty, price, or rating data. Confirm electrical requirements and pump-curve details before installation.

Who It’s For

This model is a strong candidate for owners designing a fixed, higher-demand sprinkler system with access to 230 volts. Its stated flow at 30 and 40 PSI offers more useful sizing information than maximum-flow-only listings.

Cast iron construction suits a permanent installation, while self-priming after initial setup can simplify routine operation. Buyers should verify whether the listed flows match their exact head count, pipe layout, and source capacity.

The 230-volt requirement excludes some properties, and missing pricing or warranty information makes total value harder to compare.

Motor	1.5 HP
Flow at 30 PSI	44 GPM
Maximum Pressure	44 PSI
Connections	2 in. intake; 1.5 in. discharge

What We Found

The Red Lion RL-SPRK150 is a 1.5 HP sprinkler pump with a dual-voltage 115/230-volt motor, factory set to 230 volts. It lists up to 71 GPM at 10 PSI and 44 GPM at 30 PSI, plus a 44 PSI maximum pressure.

Manufacturer guidance says it can handle up to 14 sprinkler heads with half-inch fittings, or seven with three-quarter-inch fittings, per zone. Its cast iron housing and glass-filled thermoplastic impeller are intended for well or lake water. A two-inch female NPT intake and 1.5-inch female NPT discharge support larger plumbing.

Initial priming is required, but additional priming is not needed during regular use. Ratings, price, and warranty details are absent.

Who It’s For

This pump is well suited to homeowners who want sprinkler-specific guidance rather than only a headline maximum-flow number. The stated flow at 30 PSI and suggested sprinkler counts help frame zone planning, though actual capacity still depends on layout and water supply.

Dual voltage offers installation flexibility, and the initial-prime design can reduce routine maintenance. Its cast iron housing suits a fixed setup. Buyers should confirm the head-count guidance against their sprinkler models and operating pressure. With no listed price, warranty, or Amazon rating data, value and long-term satisfaction remain unverified.

Motor	1.5 HP
Maximum Flow	4,250 GPH
Maximum Head	108 ft
Connections	2 in. NPT suction; 1.5 in. NPT discharge

What We Found

This AQUASTRONG pump pairs a 1.5 HP motor with a listed maximum flow of 4,250 GPH and a maximum head of 108 feet. Its 2-inch NPT suction and 1.5-inch NPT discharge suit larger plumbing than typical portable garden pumps.

A reinforced impeller and diffuser are described as supporting efficient water movement. The cast iron volute offers a sturdy housing for a fixed irrigation installation. Dual-voltage operation supports 115 or 230 volts, although the unit ships set to 230 volts. Automatic thermal overload protection adds a useful safeguard.

The listing does not state flow at specific operating pressures, a warranty, price, or customer ratings. Buyers should confirm electrical setup and pump performance against their sprinkler system before purchase.

Who It’s For

This model suits homeowners building a stationary irrigation setup with larger-diameter supply plumbing and a compatible electrical circuit. Its listed 4,250 GPH maximum makes it more relevant to substantial water-transfer needs than compact portable pumps, but that figure is not a guaranteed sprinkler-zone flow.

Check the water source, lift, and required pressure before sizing a system. The cast iron body favors a fixed location over frequent carrying. Dual-voltage capability may help installations with either supply, provided a qualified person verifies wiring. With no listed price, warranty, or ratings, value remains difficult to judge.

Motor	2.2 HP
Maximum Flow	3,880 GPH
Maximum Lift	164 ft
Voltage	110 V

What We Found

SHANGDA lists a 2.2 HP motor, 3,880 GPH maximum flow, and 164-foot maximum lift. The pump head uses stainless steel, while the motor housing uses aluminum. Its 110-volt operation avoids a 230-volt supply requirement, and a waterproof switch, cooling vents, and thermal overload protection are included.

The pump is intended for clean water and can draw from shallow wells, ponds, lakes, or tanks. The manufacturer says it is self-priming, but also instructs buyers to prime it with water before first use. A check valve is recommended but not included.

The listing provides no operating-pressure flow figures, warranty, price, or rating data, limiting confident comparisons for large sprinkler zones.

Who It’s For

This pump may suit a homeowner needing a versatile 110-volt unit for clean-water transfer and modest irrigation. Its listed maximum lift is substantial, but maximum lift does not show how much water reaches sprinklers under working pressure.

The stainless head offers corrosion resistance, while the aluminum motor housing keeps the design distinct from all-cast-iron options. Buyers should plan for initial priming and budget for a compatible check valve. It is less compelling for large multi-zone systems until pressure-specific performance and durability are confirmed.

No listed price or ratings make value comparisons difficult.

Motor	1.6 HP
Maximum Flow	1,340 GPH
Pressure Switch	20 PSI start; 40 PSI shutoff
Pressure Tank	5 gal

What We Found

This AQUASTRONG package combines a 1.6 HP pump with a five-gallon pressure tank and automatic pressure-switch control. The listing specifies a 20 PSI start and 40 PSI shutoff, plus maximum flow of 1,340 GPH, maximum head of 164 feet, and suction up to 26 feet.

Stainless steel housing and a carbon ceramic seal support corrosion resistance and leak control. It includes a pressure gauge, 3/4-inch hose adapters, PTFE tape, and a 6.5-foot power cord. The pump requires priming before startup.

Thermal protection is listed, and the product claims NSF certification for materials used in drinking-water applications. Its moderate maximum flow makes it more suitable for household boosting or limited irrigation than large zones.

Who It’s For

This package suits users who need automatic pressure control for domestic water boosting, a small irrigation setup, or both. The tank can reduce frequent pump cycling, while the gauge helps monitor system pressure. Its preassembled configuration and included adapters may simplify setup for compatible plumbing.

It is not an obvious choice for large lawns with high simultaneous sprinkler demand, given its listed 1,340 GPH maximum. Buyers should verify the certification applies to their intended use and confirm pressure-switch compatibility. No price or customer ratings are provided, so the package’s overall value remains uncertain.

Motor	1.6 HP
Maximum Flow	1,320 GPH at 5 ft head
Maximum Head	164 ft
Warranty	Two years

What We Found

This portable AQUASTRONG pump lists a 1.6 HP motor, 1,320 GPH maximum flow at five feet of head, and a maximum head of 164 feet. The stated suction depth reaches 26 feet. Stainless steel casing, an aluminum motor housing, and an iron carry handle balance corrosion resistance with portability.

It uses 1-inch NPT connections and includes a 3/4-inch garden hose adapter. The listing says it is not self-priming, so the pump must be filled before operation. It also describes automatic dry-run shutdown and thermal overload protection. A two-year warranty is specified, a useful assurance absent from many listings here.

The modest stated flow may constrain large sprinkler zones.

Who It’s For

This pump is better suited to smaller irrigation zones, garden watering, and occasional water transfer than to running many sprinklers simultaneously. Its portable handle and included hose adapter help users move it between a garden, tank, or shallow water source.

Buyers must prime the pump manually and protect it from running dry, despite the listed automatic shutdown feature. The two-year warranty strengthens its value case, but the 1,320 GPH figure at five feet of head should not be treated as output at higher pressure.

Check the system’s actual zone requirements first.

Motor	1 HP
Maximum Flow	1,110 GPH
Maximum Head	141 ft
Protection	One-year full-machine replacement

What We Found

LINGXIAO lists a 1 HP motor, 1,110 GPH maximum flow, 141-foot maximum head, and 29.5-foot maximum suction lift. Its pump casing, motor housing, cover, and shaft are stainless steel. The motor is described as totally enclosed and fan cooled, with a copper winding, thermal protection, and a waterproof switch.

The unit operates on 110-120 volts and includes a portable metal handle, six-foot cord, and two adapters for garden hoses. The pump must be filled with water before use. A one-year full-machine replacement protection plan is stated, but the listing does not provide pressure-specific flow, price, or customer ratings.

Its output points toward smaller jobs rather than large lawns.

Who It’s For

This pump suits users who want a portable 110-120-volt unit for modest garden watering and general clean-water transfer. Stainless steel construction and the stated full-machine replacement protection may appeal to owners concerned about corrosion and downtime. The included adapters and handle help with temporary setups.

However, a 1,110 GPH maximum flow is modest for large lawn zones, and the pump requires filling before startup. Buyers should confirm pressure performance and source-water suitability. No Amazon ratings or price are supplied, limiting comparisons of real-world value.

Motor	1.2 HP
Maximum Flow	1,209 GPH at 5 ft head
Maximum Head	147 ft
Warranty	Two years

What We Found

The 1.2 HP AQUASTRONG listing specifies 1,209 GPH at five feet of head and a maximum head of 147 feet. It can draw from a well up to 26 feet deep, according to the product details. Stainless steel casing, an aluminum motor housing, and an iron handle support portable use.

The unit has 1-inch NPT inlet and outlet connections, plus a 3/4-inch garden hose adapter. It is not self-priming, so users must fill it before starting. The listing also claims automatic shutdown when water runs out and thermal overload protection.

A two-year warranty and carbon ceramic mechanical seal are notable inclusions. No price or rating data is available to verify its budget positioning.

Who It’s For

This pump fits users who prioritize portable water transfer and smaller garden irrigation over high output. Its lower listed flow than larger models may suit a small lawn, a single modest zone, or watering from a tank. The carry handle and hose adapter simplify occasional relocation.

Before buying, account for manual priming and confirm that 1-inch plumbing matches the installation. The two-year warranty adds value, but no price is supplied, so the budget label reflects its lower stated capacity rather than a confirmed lower cost. Large lawns should compare required zone flow carefully.

Motor	1.6 HP
Maximum Flow	1,000 GPH
Maximum Lift	150 ft
Voltage	115 V

What We Found

This KITLUCK-listed pump has a 1.6 HP motor, 115-volt operation, 1,000 GPH maximum flow, 150-foot maximum lift, and 26-foot maximum suction lift. The pump head is stainless steel, while the body uses aluminum alloy. A portable handle and 6.5-foot cord support relocation.

Included fittings comprise a one-inch inlet adapter, filter with non-return valve, and 3/4-inch garden hose adapter. The listing recommends filling the pump head and inlet pipe before use, checking seals, and draining waste water afterward. It describes uses including lawn irrigation, pool draining, and water transfer.

The low listed flow makes large sprinkler zones questionable. No warranty, price, or ratings are provided.

Who It’s For

This unit is best suited to occasional transfer, drainage, and light irrigation where portability and included fittings matter. The filter and non-return valve may help protect the inlet, while the adapters support common garden hose connections.

It is a less convincing choice for a large lawn because its stated maximum is only 1,000 GPH, without a pressure-specific flow figure. Buyers should follow the priming and draining instructions and verify clean-water limitations with the seller.

With no price, warranty, or ratings listed, long-term value is difficult to assess.

What to Look For Before Buying

Pump selection starts with the sprinkler system, not the motor’s horsepower claim. Count the heads in each zone and check their required flow and pressure. Then compare those requirements with pump performance at the operating pressure, not just a maximum-flow headline.

Confirm that the water source, plumbing, electrical supply, and priming method all fit the installation.

Check Match Flow at Working Pressure

Find the flow and pressure required by each sprinkler head. Add the head flows within a zone to estimate total demand. Compare that figure with pump output at the same pressure. Maximum GPH or GPM alone can overstate usable sprinkler capacity.

Favor listings that publish pressure-specific flow or a pump curve.

Value Verify Water Source and Lift

Measure the vertical distance from the source water level to the pump and sprinklers. Account for friction losses from pipe length, fittings, filters, and elevation changes. Check the pump’s permitted suction lift against the actual source depth. Use clean water unless the manufacturer explicitly permits other water.

A check valve or filter may be necessary.

Rating Check Electrical and Installation Needs

Confirm the available supply voltage before selecting a pump. Some models support both 115 and 230 volts, while others require 230 volts. Check the nameplate, wiring instructions, circuit capacity, and local electrical requirements. Compare connection sizes with the planned plumbing.

Fixed cast iron pumps need a stable location and weather protection.

Verify Review Priming and Protection

Determine whether the pump is self-priming and whether it still needs an initial fill. Follow the manual’s priming procedure before operation. Thermal protection does not always prevent damage from dry running, so verify the listed safeguards. Check warranty terms, replacement support, and customer ratings before purchase.

Drain and winterize equipment where freezing is possible.

Frequently Asked Questions

How much pump flow does a large lawn need?

There is no single flow target because sprinkler heads and zone layouts vary. Add the rated flow of every head operating together. Match that total to pump output at the zone’s required pressure. Larger lawns often work better with multiple zones than one oversized zone.

Is maximum GPH enough to compare sprinkler pumps?

No. Maximum GPH usually describes flow under conditions that may not match sprinkler operation. Pressure, suction lift, pipe friction, and elevation reduce delivered flow. Use a pump curve or pressure-specific flow figures when sizing a zone.

Should a garden sprinkler pump be self-priming?

Self-priming can reduce repeated setup work, but many pumps still require an initial fill. Non-self-priming models need careful priming before startup. Follow the manufacturer’s instructions and never run a pump dry unless its manual explicitly permits it.

Can a 115-volt pump run a large lawn sprinkler system?

Voltage alone does not determine irrigation capacity. Compare the pump’s pressure-specific output with the zone’s combined head demand. Also verify circuit capacity and manufacturer wiring requirements. Some higher-capacity systems may need a 230-volt pump and compatible electrical service.

Can these pumps draw water from ponds or rain tanks?

Several listings describe use with ponds, tanks, or shallow wells, but water-quality limits vary by model. Check whether the pump requires clean water and whether filtration is recommended. Measure suction lift, use suitable inlet plumbing, and prevent debris from reaching the impeller.

🎯 Final Verdict

The AQUASTRONG 2 HP pump is the strongest large-lawn candidate in this selection, with the highest stated maximum flow at 5,200 GPH and large plumbing connections. Its cast iron housing and thermal protection suit a stationary irrigation installation.

However, the listing omits flow at operating pressure, so confirm the pump curve against the sprinkler zones before buying. The LUMIRA is a useful alternative because it publishes flow at 30 and 40 PSI.

Check your water source, electrical supply, and zone demand, then choose the pump that meets those figures.
